Bolt Specification

ASTM F1554 Anchor bolt designed to anchor structural supports to concrete foundations

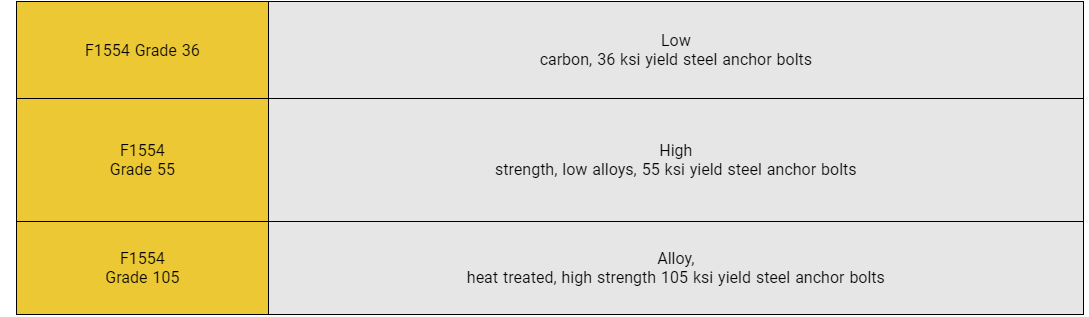

F1554 Grades

Screenshot 2023 12 25 155734

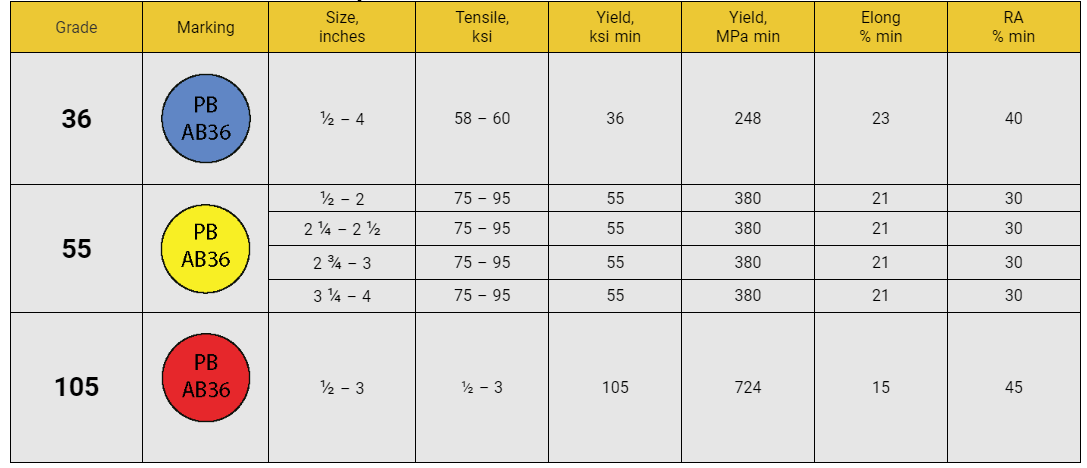

F1554 Mechanical Properties

Screenshot 2023 12 25 155848

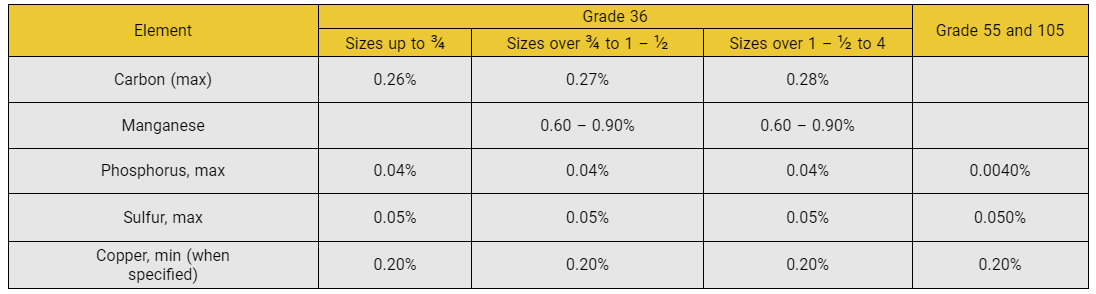

F1554 Mechanical Properties

Screenshot 2023 12 25 155918

Nut Specification

ASTM A194 Carbon and alloy steel nuts for high pressure and high temperature service

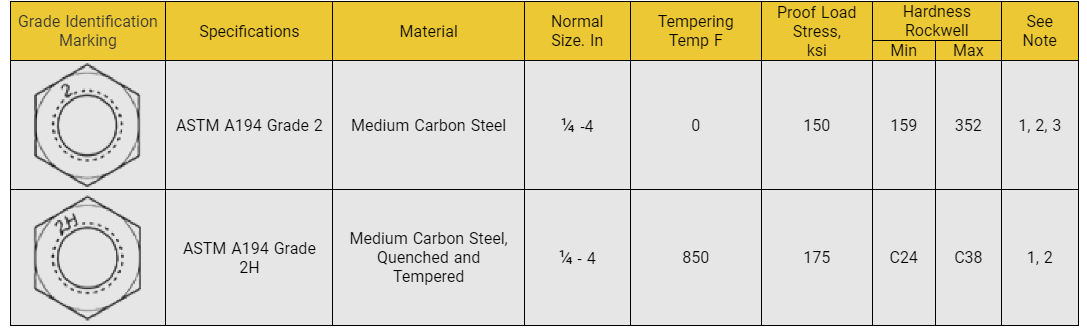

A194 Mechanical Properties​

Screenshot 2023 12 25 155947
ASTM A563 Standard specification for carbon and alloy steel nuts

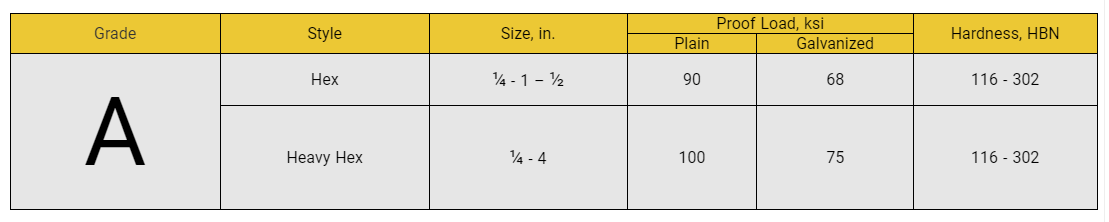

A563 Mechanical Properties

Screenshot 2023 12 25 160016

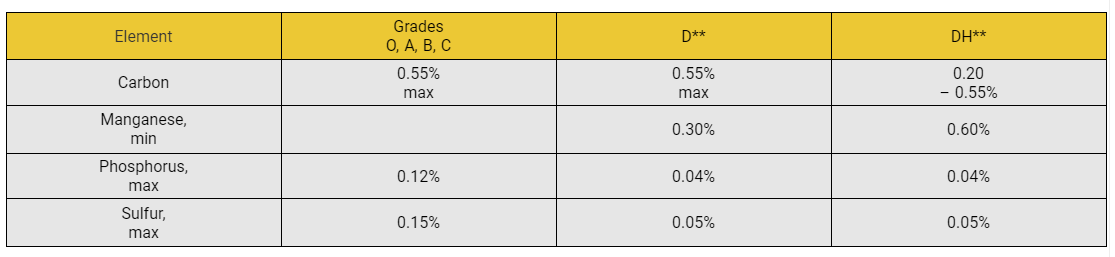

A563 Grade Identification Markings

Screenshot 2023 12 25 160038

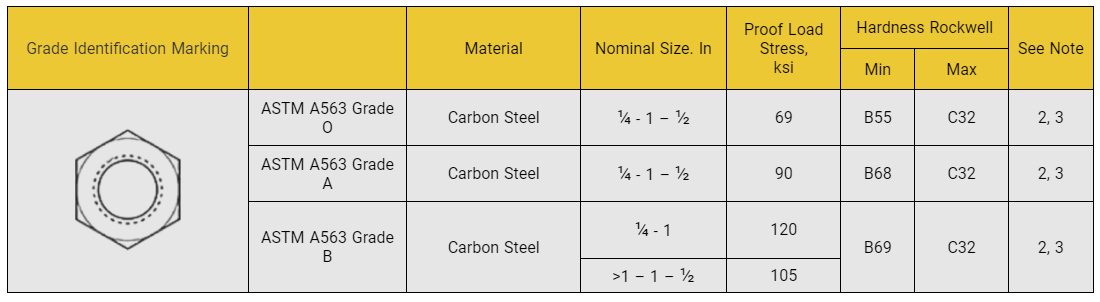

A563 Grade Identification Markings

Screenshot 2023 12 25 160056
